Symat 25
Fully proportional for fast, accurate guiding
Durable construction for low maintenance and long-lasting reliability
Very high frequency response
Fife Symat Offset Pivot Guide Overview
The Symat 25 is a compact, versatile electromechanical system engineered for narrow-web applications where short entry and exit spans are required. This offset pivot guide is available with three standard roller faces: 160.0 mm (6.30 inches), 200.2 mm (7.88 inches), and 250 mm (9.84 inches). The same dimensions are available for guide spans, and the maximum allowed tension is 156 or 200 N (35 or 45 lbs), depending on wrap style used.
Designed with a cast base and precision milled parts, the durable Symat 25 increases productivity by minimizing downtime and waste. Depending on your needs and sensor(s) selected, this guide provides precise, reliable operation in edge, center, or line guide applications. Optional Servo-Center provides automatic guide centering to speed the setup and threading process.
Symat 25 Offset Pivot Guide
| Minimum Guide Span | 6.30 in160 mm |
|---|---|
| Maximum Guide Span | 9.84 in250 mm |
| Minimum Roller Face | 6.30 in160 mm |
| Maximum Roller Face | 9.84 in250 mm |
| Roller Diameter | 2.00 in50.8 mm Includes additional options than 2" |
| Maximum Load Capacity | 45 lb200 N |
| Maximum Correction | +/- 0.094 in+/- 22.4 mm |

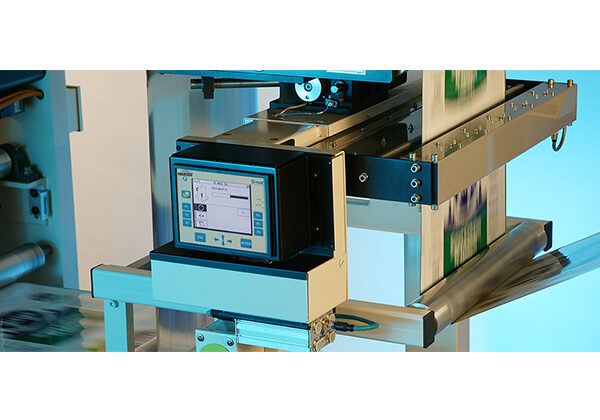

Symat 50 Offset Pivot Guide
| Minimum Guide Span | 10 in254 mm |
|---|---|
| Maximum Guide Span | 24.02 in610 mm |
| Minimum Roller Face | 7.99 in203 mm |
| Maximum Roller Face | 24.02 in610 mm |
| Minimum Roller Diameter | 2.00 in50.8 mm |
| Maximum Roller Diameter | 5.98 in152 mm |
| Maximum Load Capacity | 623 N623 N |
| Maximum Correction | +/- 1.824 in+/- 31 mm |
